ptermcs

Create character set files for pterm

Syntax:

ptermcs [-S i|m|n] [-s server] [-x x_pos]
        [-y y_pos] filename

Options:

-S i|m|n

Specify initial window state (i - iconify, m - maximize, n - normal).

-s server

Specify Photon server node or device name.

-x x_pos

Initial x_pos position of window.

-y y_pos

Initial y_pos position of window.

filename

Name of file to load.

Description:

The ptermcs utility creates files to specify character settings that pterm uses for its custom font list.

Terminal charset setup

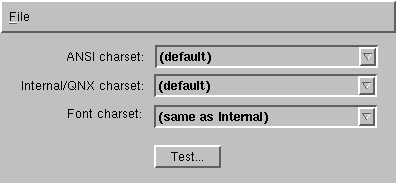

When you invoke ptermcs, the Terminal charset setup dialog appears.

In this dialog, you can customize the charsets as follows:

ANSI charset

Choose a character set that you want pterm to use when your terminal emulation is set to ANSI in pterm's Terminal Properties dialog. The ISO 8859 character sets are a good choice for ANSI mode because all of the printable characters are in this range (32-127, 160-255). Default is Western European (ISO 8859-1).

Internal/QNX charset

Choose a character set that you want pterm to use when your terminal emulation is set to QNX in pterm's Terminal Properties dialog. DOS code pages such as Cyrillic (IBM 866) or the PC character set ("IBM code page 437") are the best choices since they contain all of the alphanumeric characters as well as the line-drawing characters. Default is PC character set ("IBM code page 437").

Font charset

Choose the character encoding that your fonts use. Default is PC character set ("IBM code page 437").

To save your changes, select Save on the File menu.

Examples:

Run ptermcs using the Photon server on node 4:

ptermcs -s4

Or

ptermcs -s//4/dev/photon

Run at initial position (10,10):

ptermcs -x10 -y10
