PtClock

`PtClock`

An analog, digital, or LED clock

Class hierarchy:

PtWidget --> PtBasic --> PtClock

For more information, see the diagram of the widget hierarchy.

Description:

A PtClock draws a clock and can optionally update its display periodically (about once a second) to reflect the current time.

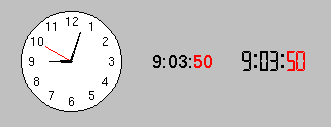

Analog, digital, and LED clocks created by PtClock.

This isn't necessarily an accurate way to track time.

The widget may flicker excessively, particularly if a transparent fill color is used. To reduce flicker:

Use a nontransparent fill color.
Disable the display of seconds.
Place the clock in a PtDBContainer widget.

New resources:

Resource	C type	Pt type	Default
Pt_ARG_CLOCK_FACE_COLOR	`PgColor_t`	Scalar	Pg_WHITE
Pt_ARG_CLOCK_FACE_OUTLINE_COLOR	`PgColor_t`	Scalar	Pg_BLACK
Pt_ARG_CLOCK_FLAGS	`long`	Flag	See below.
Pt_ARG_CLOCK_FONT	`char *`	String	`"helv12"`
Pt_ARG_CLOCK_HOUR	`short`	Scalar	Pt_CLOCK_CURRENT
Pt_ARG_CLOCK_HOUR_COLOR	`PgColor_t`	Scalar	Pg_BLACK
Pt_ARG_CLOCK_HOUR_OFFSET	`short`	Scalar	0
Pt_ARG_CLOCK_MINUTE	`short`	Scalar	Pt_CLOCK_CURRENT
Pt_ARG_CLOCK_MINUTE_COLOR	`PgColor_t`	Scalar	Pg_BLACK
Pt_ARG_CLOCK_MINUTE_OFFSET	`short`	Scalar	0
Pt_ARG_CLOCK_SECOND	`short`	Scalar	Pt_CLOCK_CURRENT
Pt_ARG_CLOCK_SECOND_COLOR	`PgColor_t`	Scalar	Pg_RED
Pt_ARG_CLOCK_SECOND_OFFSET	`short`	Scalar	0
Pt_ARG_CLOCK_SEP1	`char *`	String	`":"`
Pt_ARG_CLOCK_SEP1_COLOR	`PgColor_t`	Scalar	Pg_BLACK
Pt_ARG_CLOCK_SEP2	`char *`	String	`":"`
Pt_ARG_CLOCK_SEP2_COLOR	`PgColor_t`	Scalar	Pg_BLACK
Pt_ARG_CLOCK_TYPE	`short`	Scalar	Pt_CLOCK_ANALOG
Pt_CB_CLOCK_TIME_CHANGED	`PtCallback_t *`	Link	NULL

Pt_ARG_CLOCK_FACE_COLOR

C type	Pt type	Default
`PgColor_t`	Scalar	Pg_WHITE

The fill color of the clock's face (applicable only for analog clocks).

Pt_ARG_CLOCK_FACE_OUTLINE_COLOR

C type	Pt type	Default
`PgColor_t`	Scalar	Pg_BLACK

The color of the line drawn around the clock face (applicable only for analog clocks).

Pt_ARG_CLOCK_FLAGS

C type	Pt type	Default
`long`	Flag	Pt_CLOCK_TRACK_TIME \| Pt_CLOCK_SHOW_SECONDS \| Pt_CLOCK_SHOW_NUMBERS

Defines the clock's behavior. Possible values are:

Pt_CLOCK_24_HOUR: Use a 24-hour display rather than conventional 12-hour format. This flag overrides Pt_CLOCK_SHOW_AMPM.
Pt_CLOCK_PAD_HOURS: Pad the hour field with a leading zero such that there are always 2 digits in the hours field (applicable only for digital or LED clocks).
Pt_CLOCK_SHOW_AMPM: Display an AM/PM indicator. For digital clocks, this is rendered as an AM or PM suffix. For LED clocks, this is rendered as a dot in the upper right corner (AM) or lower right corner (PM) of the display. This flag has no effect on analog clocks, and is overridden by the Pt_CLOCK_24_HOUR flag.
Pt_CLOCK_SHOW_NUMBERS: Display numbers on the face (applicable only for analog clocks).
Pt_CLOCK_SHOW_SECONDS: Display the seconds component of the time.
Pt_CLOCK_TRACK_TIME: Update the clock every second to reflect the current time. If this flag isn't set, the clock holds its current setting until it's changed programmatically or the flag is reenabled.

Pt_ARG_CLOCK_FONT

C type	Pt type	Default
`char *`	String	`"helv12"`

The font to use. For analog clocks, this applies to the numbers on the face (if displayed). For digital clocks, this applies to the entire display.

Pt_ARG_CLOCK_HOUR

C type	Pt type	Default
`short`	Scalar	Pt_CLOCK_CURRENT

The current hour setting for the clock (reflecting the current system clock setting if Pt_CLOCK_TRACK_TIME is set). This value is in 24-hour format. When setting this resource, a value of Pt_CLOCK_CURRENT causes the clock to assume the current system time setting.

Pt_ARG_CLOCK_HOUR_COLOR

C type	Pt type	Default
`PgColor_t`	Scalar	Pg_BLACK

The color to use when drawing the hours component.

Pt_ARG_CLOCK_HOUR_OFFSET

C type	Pt type	Default
`short`	Scalar	0

Offset the clock setting by this amount when displaying the hours field.

Pt_ARG_CLOCK_MINUTE

C type	Pt type	Default
`short`	Scalar	Pt_CLOCK_CURRENT

The current minute setting for the clock (reflecting the current system clock setting if Pt_CLOCK_TRACK_TIME is set). When setting this resource, a value of Pt_CLOCK_CURRENT causes the clock to assume the current system time setting.

Pt_ARG_CLOCK_MINUTE_COLOR

C type	Pt type	Default
`PgColor_t`	Scalar	Pg_BLACK

The color to use when drawing the minutes component.

Pt_ARG_CLOCK_MINUTE_OFFSET

C type	Pt type	Default
`short`	Scalar	0

Offset the clock setting by this amount when displaying the minutes field.

Pt_ARG_CLOCK_SECOND

C type	Pt type	Default
`short`	Scalar	Pt_CLOCK_CURRENT

The current second setting for the clock (reflecting the current system clock setting if Pt_CLOCK_TRACK_TIME is set). When setting this resource, a value of Pt_CLOCK_CURRENT causes the clock to assume the current system time setting.

Pt_ARG_CLOCK_SECOND_COLOR

C type	Pt type	Default
`PgColor_t`	Scalar	Pg_RED

The color to use when drawing the seconds component.

Pt_ARG_CLOCK_SECOND_OFFSET

C type	Pt type	Default
`short`	Scalar	0

Offset the clock setting by this amount when displaying the seconds field.

Pt_ARG_CLOCK_SEP1

C type	Pt type	Default
`char *`	String	`":"`

The separator to use between the hours and minutes field (applicable only for digital clocks; LED clocks always use a colon). Only the first character of the string is used.

Pt_ARG_CLOCK_SEP1_COLOR

C type	Pt type	Default
`PgColor_t`	Scalar	Pg_BLACK

The color to use when drawing the separator character between hours and minutes.

Pt_ARG_CLOCK_SEP2

C type	Pt type	Default
`char *`	String	`":"`

The separator to use between the minutes and seconds field (applicable only for digital clocks with Pt_CLOCK_SHOW_SECONDS set; LED clocks always use a colon). Only the first character of the string is used.

Pt_ARG_CLOCK_SEP2_COLOR

C type	Pt type	Default
`PgColor_t`	Scalar	Pg_BLACK

The color to use when drawing the separator character between minutes and seconds.

Pt_ARG_CLOCK_TYPE

C type	Pt type	Default
`short`	Scalar	Pt_CLOCK_ANALOG

The clock type:

Pt_CLOCK_DIGITAL: A numeric display (using system fonts).
Pt_CLOCK_LED: A scalable display that resembles conventional LED/LCD digital clocks.
Pt_CLOCK_ANALOG: An analog clock with hands.

Pt_CB_CLOCK_TIME_CHANGED

C type	Pt type	Default
`PtCallback_t *`	Link	NULL

A list of callbacks invoked when the time on the clock changes. This occurs once a second if Pt_CLOCK_SHOW_SECONDS is set, otherwise once every minute when the minute changes.

These callbacks are also invoked whenever a call to PtSetResources() causes a time change, provided the Pt_CALLBACKS_ACTIVE flag is set (see PtWidget).

Each callback is passed a PtCallbackInfo_t structure that contains at least the following members:

reason

The name of the callback resource (Pt_CB_CLOCK_TIME_CHANGED) that caused this callback to be invoked.

reason_subtype

Why this callback was invoked. This value is a flag that may contain any of the following (ORed together):

Pt_CLOCK_HOUR_CHANGED
Pt_CLOCK_MINUTE_CHANGED
Pt_CLOCK_SECOND_CHANGED

event

The event that caused the callback. If event is NULL, the callback was invoked because the time setting was changed programmatically using a called to PtSetResources().

cbdata

A pointer to a PtClockTimeCallback_t structure that contains at least:

short hour - The new hour displayed on the clock (in 24-hour format). Note that this includes the hour offset, if any.
short minute - The new minute displayed on the clock.
short second - The new second displayed on the clock.
short old_hour - The previous hour displayed on the clock before the change was made (in 24-hour format). Note that this includes the hour offset, if any.
short old_minute - The previous minute displayed on the clock before the change was made.
short old_second - The previous second displayed on the clock before the change was made.

These callbacks should return Pt_CONTINUE.

Inherited resources:

If the widget modifies an inherited resource, the "Default override" column indicates the new value. This modification affects any subclasses of the widget.

Resource	Inherited from	Default override
Pt_ARG_AREA	`PtWidget`
Pt_ARG_BANDWIDTH_THRESHOLD	`PtBasic`	Not used by this class.
Pt_ARG_BITMAP_CURSOR	`PtWidget`
Pt_ARG_BORDER_WIDTH	`PtWidget`
Pt_ARG_BOT_BORDER_COLOR	`PtBasic`
Pt_ARG_COLOR	`PtBasic`
Pt_ARG_CURSOR_COLOR	`PtWidget`
Pt_ARG_CURSOR_TYPE	`PtWidget`
Pt_ARG_DATA	`PtWidget`
Pt_ARG_DIM	`PtWidget`
Pt_ARG_EFLAGS	`PtWidget`
Pt_ARG_FILL_COLOR	`PtBasic`
Pt_ARG_FILL_PATTERN	`PtBasic`
Pt_ARG_FLAGS	`PtWidget`
Pt_ARG_HELP_TOPIC	`PtWidget`
Pt_ARG_HIGHLIGHT_ROUNDNESS	`PtBasic`
Pt_ARG_MARGIN_HEIGHT	`PtBasic`	1
Pt_ARG_MARGIN_WIDTH	`PtBasic`	1
Pt_ARG_POS	`PtWidget`
Pt_ARG_RESIZE_FLAGS	`PtWidget`	Pt_RESIZE_XY_AS_REQUIRED
Pt_ARG_TOP_BORDER_COLOR	`PtBasic`
Pt_ARG_TRANS_PATTERN	`PtBasic`
Pt_ARG_USER_DATA	`PtWidget`
Pt_CB_ACTIVATE	`PtBasic`
Pt_CB_ARM	`PtBasic`
Pt_CB_BLOCKED	`PtWidget`
Pt_CB_DESTROYED	`PtWidget`
Pt_CB_DISARM	`PtBasic`
Pt_CB_GOT_FOCUS	`PtBasic`
Pt_CB_HOTKEY	`PtWidget`
Pt_CB_LOST_FOCUS	`PtBasic`
Pt_CB_MENU	`PtBasic`
Pt_CB_RAW	`PtWidget`
Pt_CB_REALIZED	`PtWidget`
Pt_CB_REPEAT	`PtBasic`
Pt_CB_UNREALIZED	`PtWidget`
